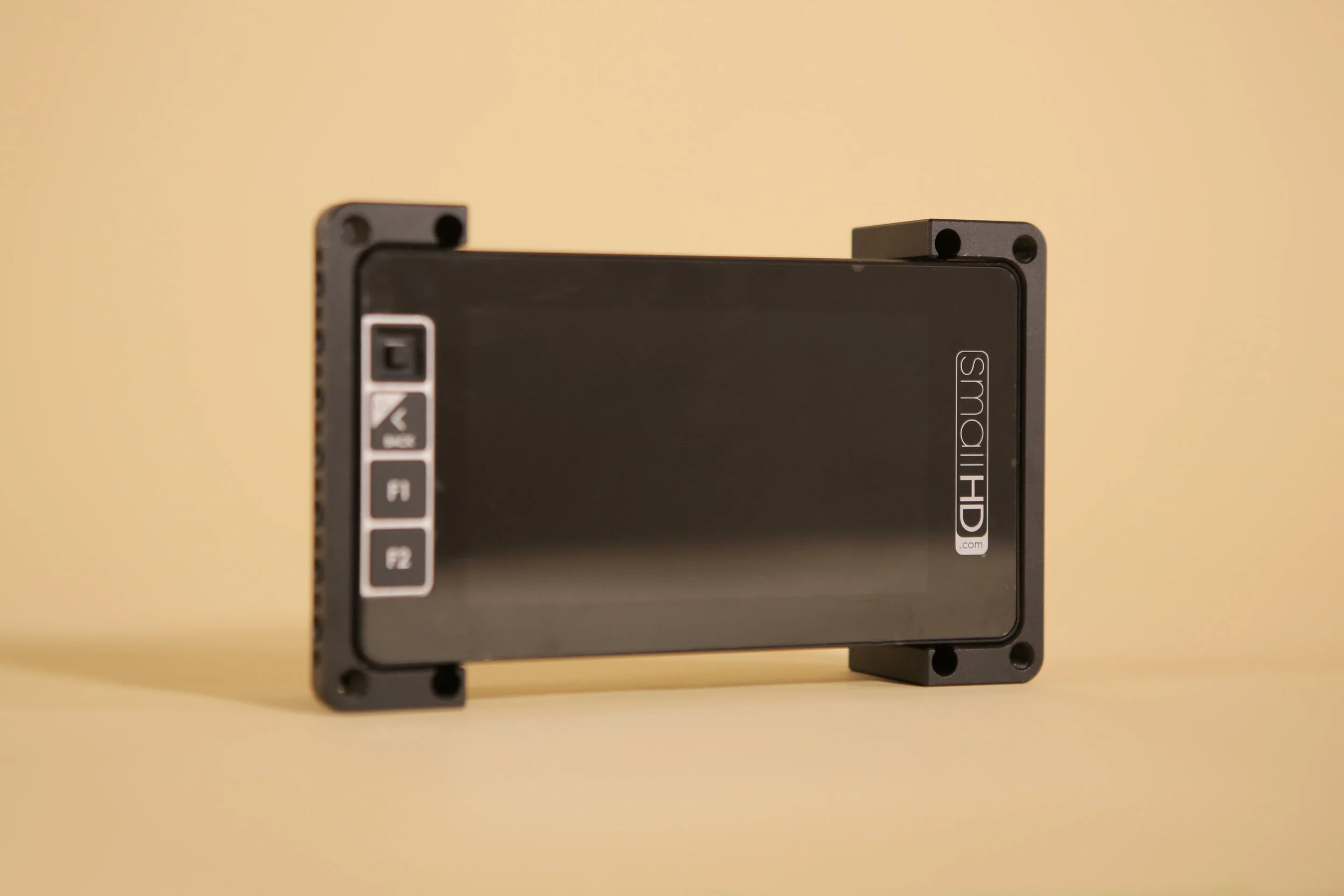

Small HD 703 Bolt

Monitor your camera's feed completely free of wires with the SmallHD 703 Bolt 7" Wireless Director's Monitor Bundle. This bundle adds a Gold mount plate, side handles, and a neck strap to complement the monitor itself. Since the monitor can now operate on battery power from a separately available battery, with a compatible wireless connection, the 703 Bolt can be taken around the set fully untethered.

Borrowing the wireless technology from Teradek, the 703 Bolt can receive uncompressed HD wireless signals from Bolt 500, 1000, or 3000 transmitters up to 300' away with no perceptible latency. With this feature, anyone can walk around the set while monitoring a camera feed, perfect for directors and camera assistants. Furthermore, despite the presence of a wireless receiver, the 703 Bolt maintains a slim profile similar to on-camera monitors.

Flanders Scientific BM-210 21”

The BM210 is a lightweight and power-efficient 21.5” broadcast monitor with an extended feature set geared towards production, editorial, and broadcast environments. FSI’s 2nd generation Color Fidelity and LUT Interpolation Engine (CFE2) houses multiple 4,913 point (173) calibration and DIT (look) LUTs for accurate color reproduction and effective look management. Instantly select from Rec709, EBU, SMPTE-C, DCI P3 Emulation*, Rec2020 Emulation*, Native Wide Gamut, and Custom User Generated color spaces. Additional gamma, peak luminance, and color temperature toggles further add to the versatility of the BM210. All CFE2 equipped monitors also feature an easy to use menu toggle to instantly switch between data (full) range monitoring or video (legal) range monitoring modes.

SmallHD Cine 24” 4K

Cine 24 brings 4K, daylight-viewable monitoring everywhere. Lightweight for faster setup and teardown, this monitor is the all-around solution as a director’s monitor or for production and broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse.

The Cine 24” 4K High-Bright Monitor offers 1350 nits of sustained brightness, enabling clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. The 24-inch screen, the largest in our Cine series, features a 3840x2160 resolution as well as 10-bit color depth and 100% DCI-P3 color gamut for color-accurate images.

Cine 24 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

SmallHD Cine 13 4K

The Cine 13 features four 12G-SDI inputs and four 12G-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. There is also a 3.5mm headphone output to monitor the embedded audio. All functionality of the monitor is accessed via the innovative Page Builder in PageOS 4 that features a sophisticated UI, preconfigured pages, and adjustable page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.

You can power the Cine 13 using its 4-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and you can hot-swap between the XLR and optional battery power. You can also simultaneously power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.

Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. The monitor includes numerous accessories, such as an acrylic screen protector, a 3' long 4K HDMI cable, a monitor foot set, a 4-pin XLR power supply, an 8GB SD card, a top handle, and a microfiber cleaning cloth.

SmallHD Cine 7 Bolt 4K / 6K

The compact monitor features a 1920 x 1200 IPS touchscreen, 1800 cd/m² brightness, and an L-series dual battery plate, and it has HDMI and 3G-SDI inputs and outputs. The Bolt 6 monitor module 1500 RX allows you to receive a video signal from up to 1500' away, and it is powered using a separately available Gold mount battery. It is compatible with Bolt 6 and all Bolt 4K 5G transmitters as well.

The receiver module supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

Sony PVMA170 OLED 17”

The Sony PVMA170 17" Professional OLED Production Monitor is suitable for both field and studio use. It features a 16.5" diagonal OLED panel with a native resolution of 1920 x 1080. Because of the OLED technology employed, each pixel can be switched completely off--unlike typical LCD displays--for a much closer approximation of true black. It can be connected to standard and high-definition video sources via SDI or HDMI, as well as analog standard-definition sources through composite.

The PVMA170 features two SDI inputs with a loop-through out that support 3G-SDI, HD-SDI, and SD-SDI signals at resolutions up to 1080p60. In addition, 24 fps is supported, including 23.98p, 23.98PsF, 24p native, and 24PsF. It features an HDMI input that supports 1080p60, 24p, 23.98p, standard definition, and several computer resolutions. A composite input with loop-through output provides connectivity for standard-definition analog devices, and is paired with a 3.5mm stereo mini jack audio input. A front panel 3.5mm headphone jack allows users to monitor embedded audio locally, and there is also a 1W built-in speaker.
